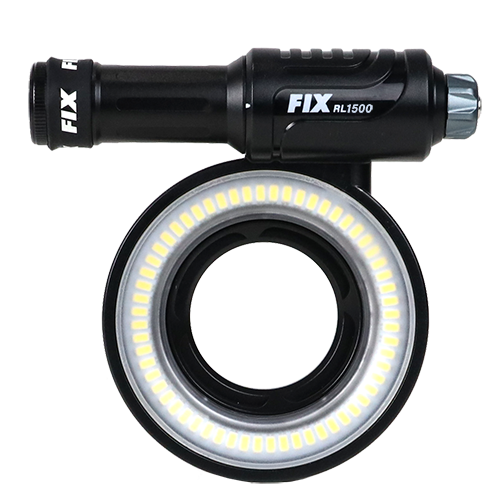

FIX Ringlight1500

FIX Ringlight1500

#30614

01

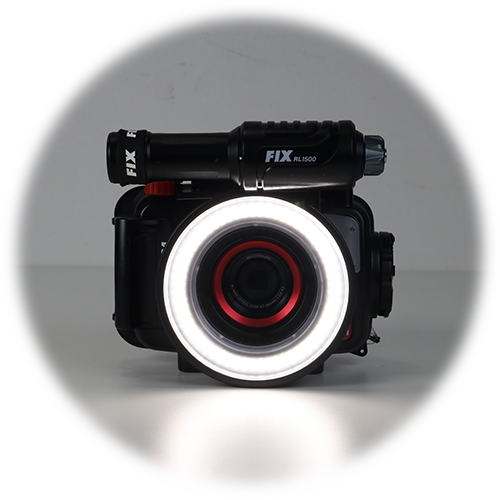

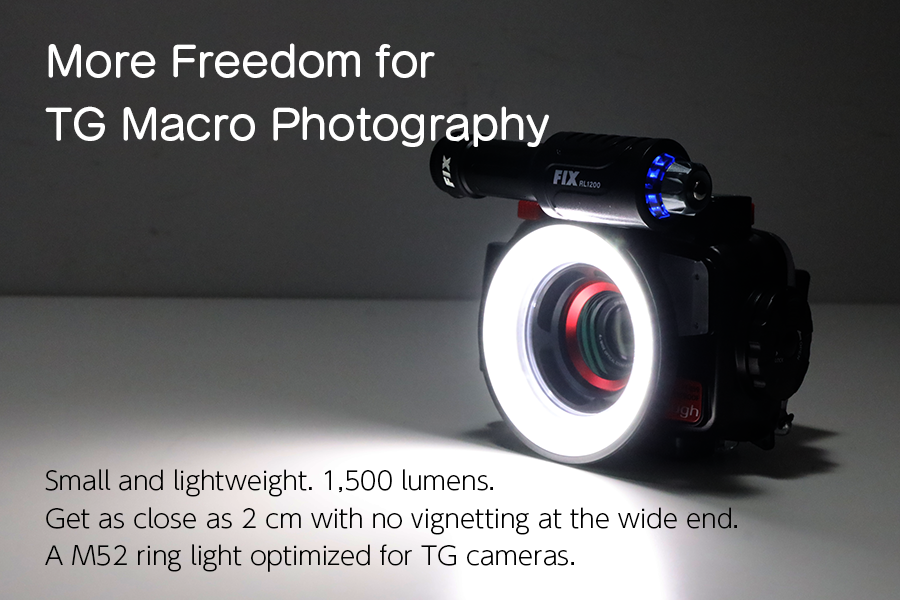

Ultra small - Lightest!

World's smallest ring light Minimized by exclusive design for TG series

02

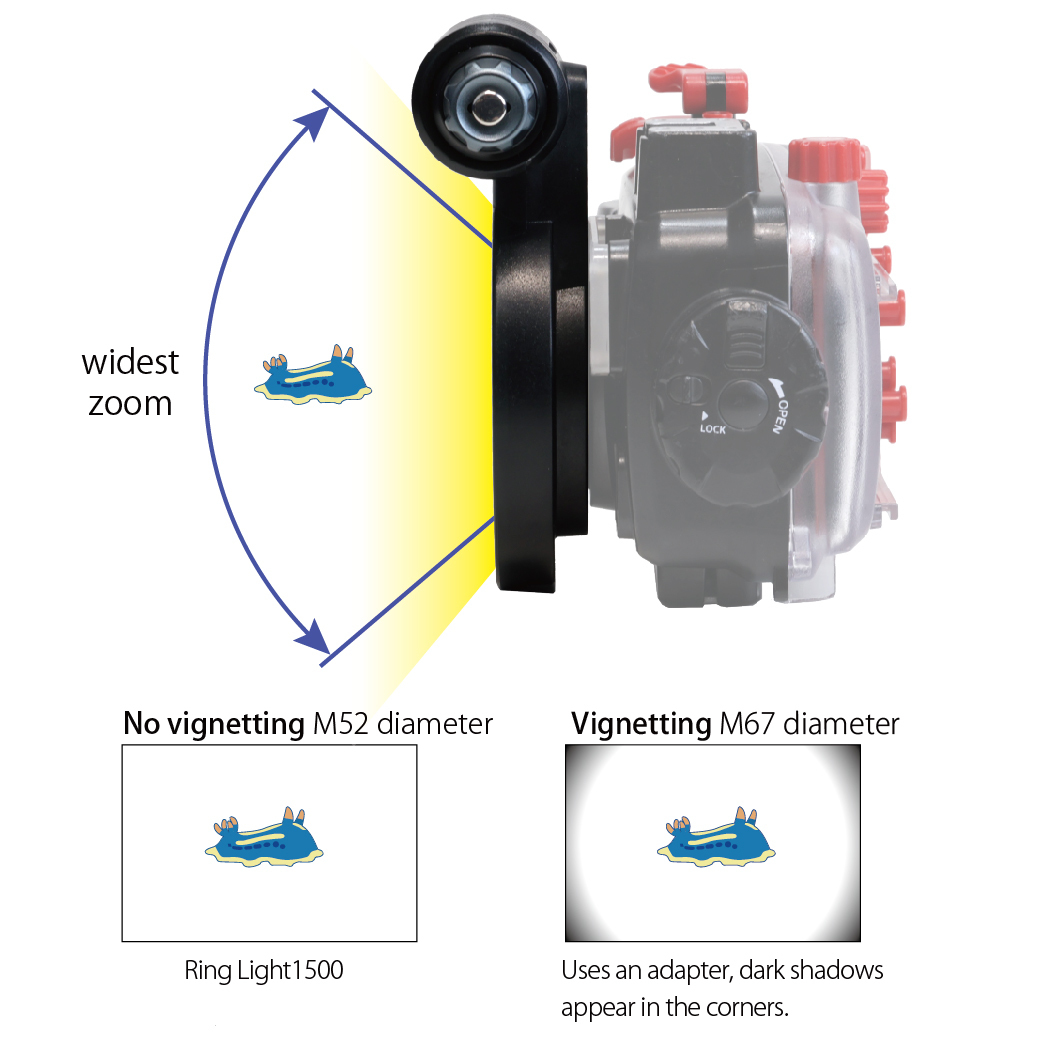

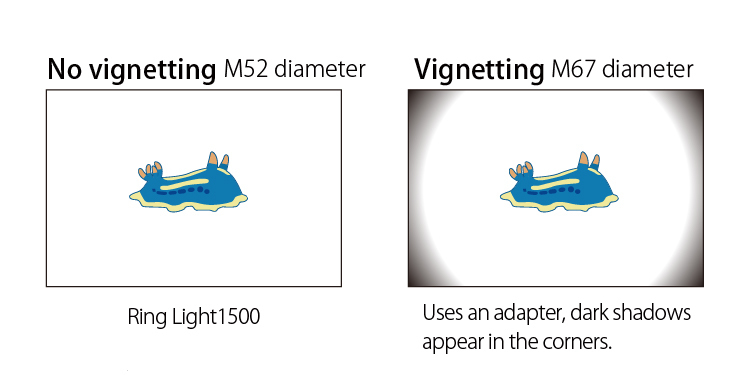

No vignetting at widest zoom!

Thanks to the optical design optimized for TG, no vignetting even when zoomed at the wide end!

03

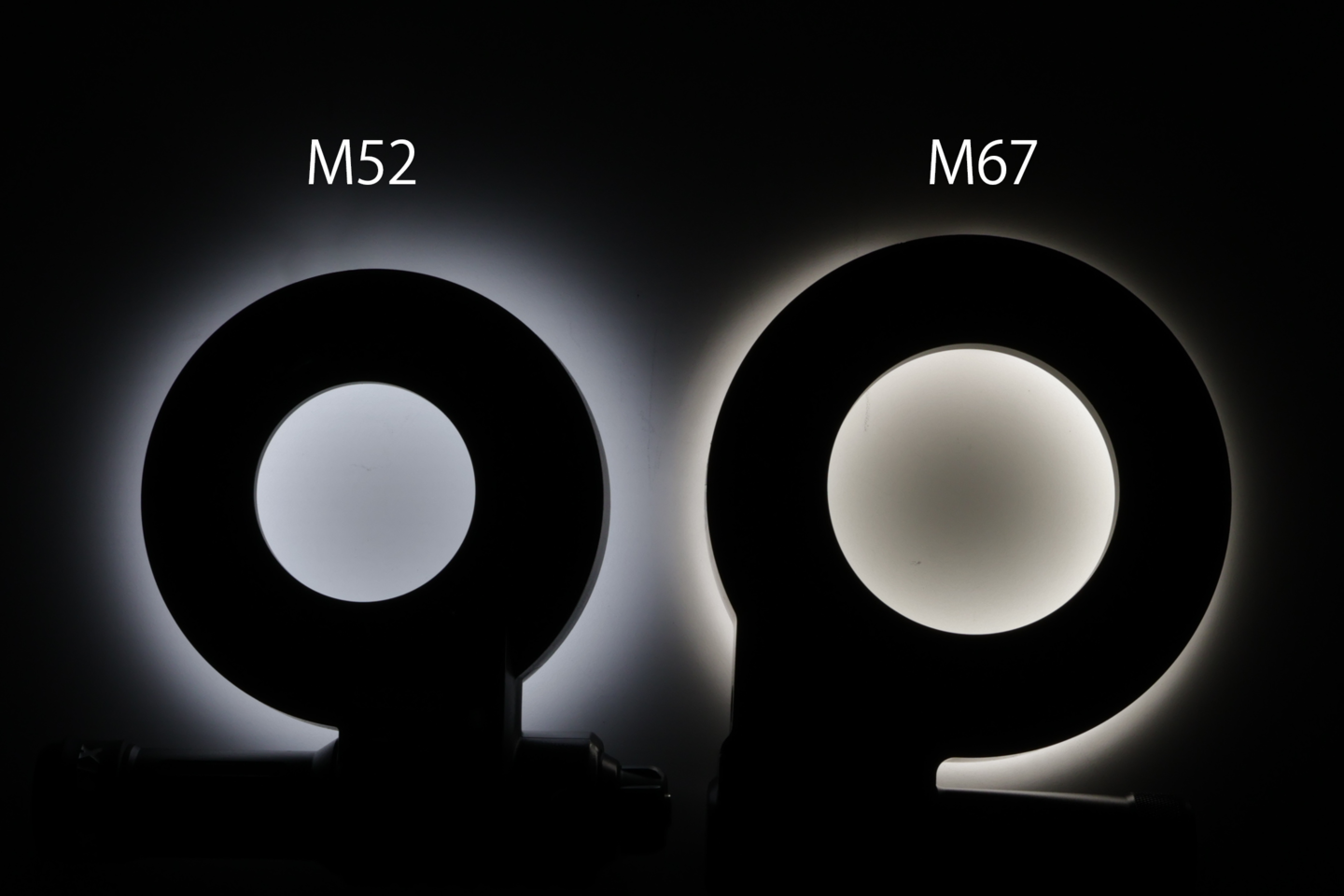

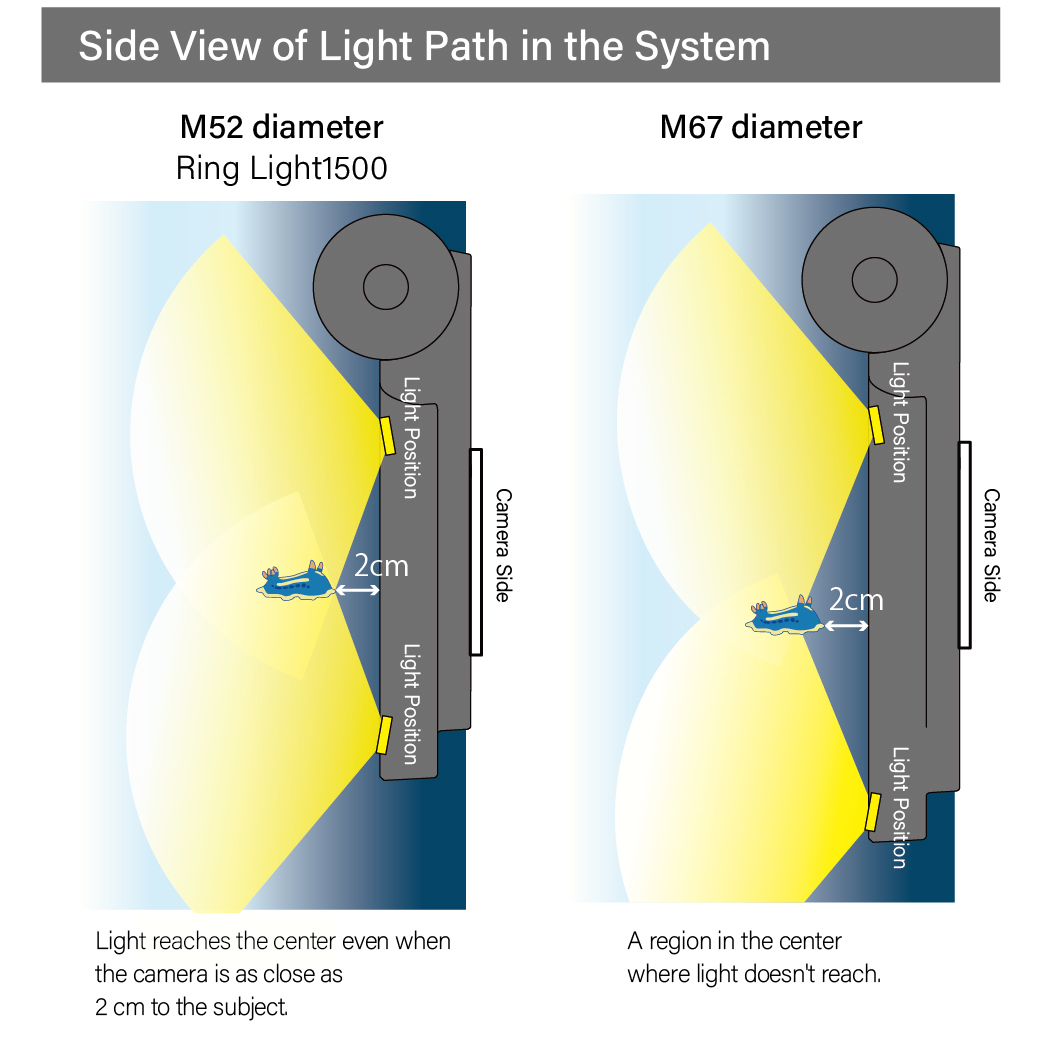

Get as close as 2cm!

M52 diameter for TG allows ultra-close-ups with no center shadow deespite getiing really close!

04

1500lm max luminous power

No.1 luminous power in its class. Continuous lighting time of more than 60 minites at max rate!

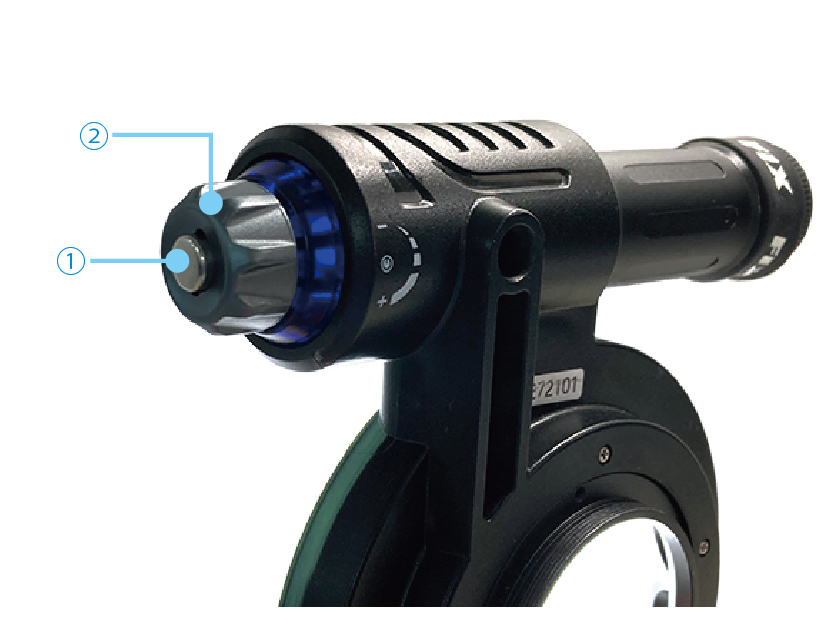

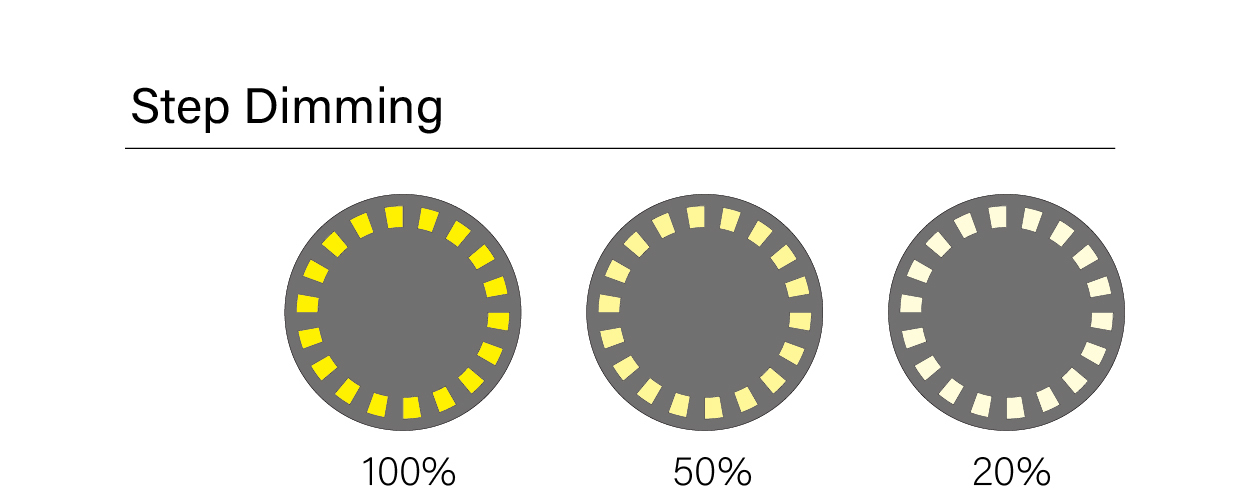

①4-step dimming using Power/Select Button

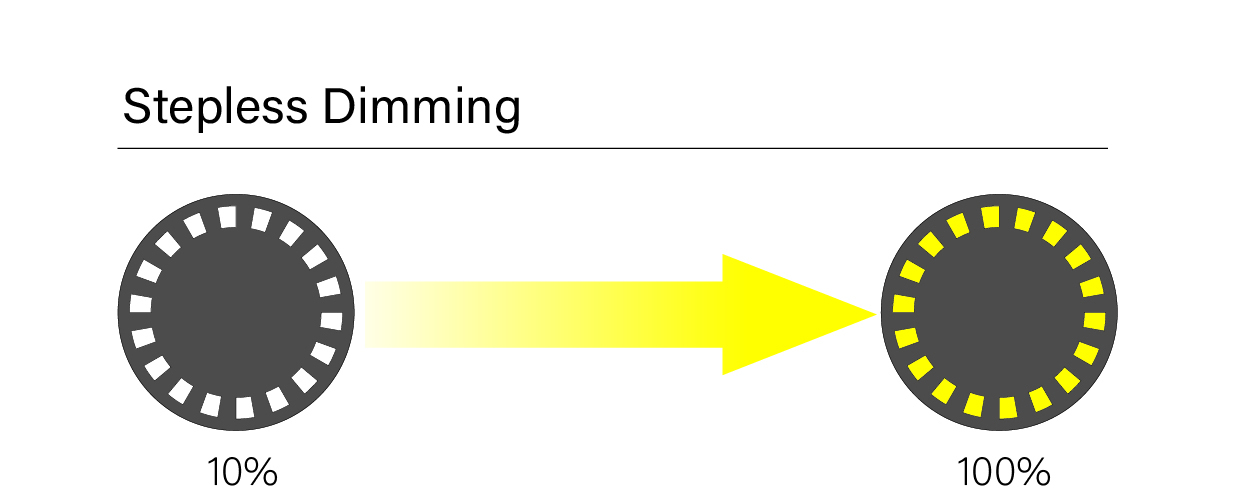

②Stepless dimming using Contorl Knob

05

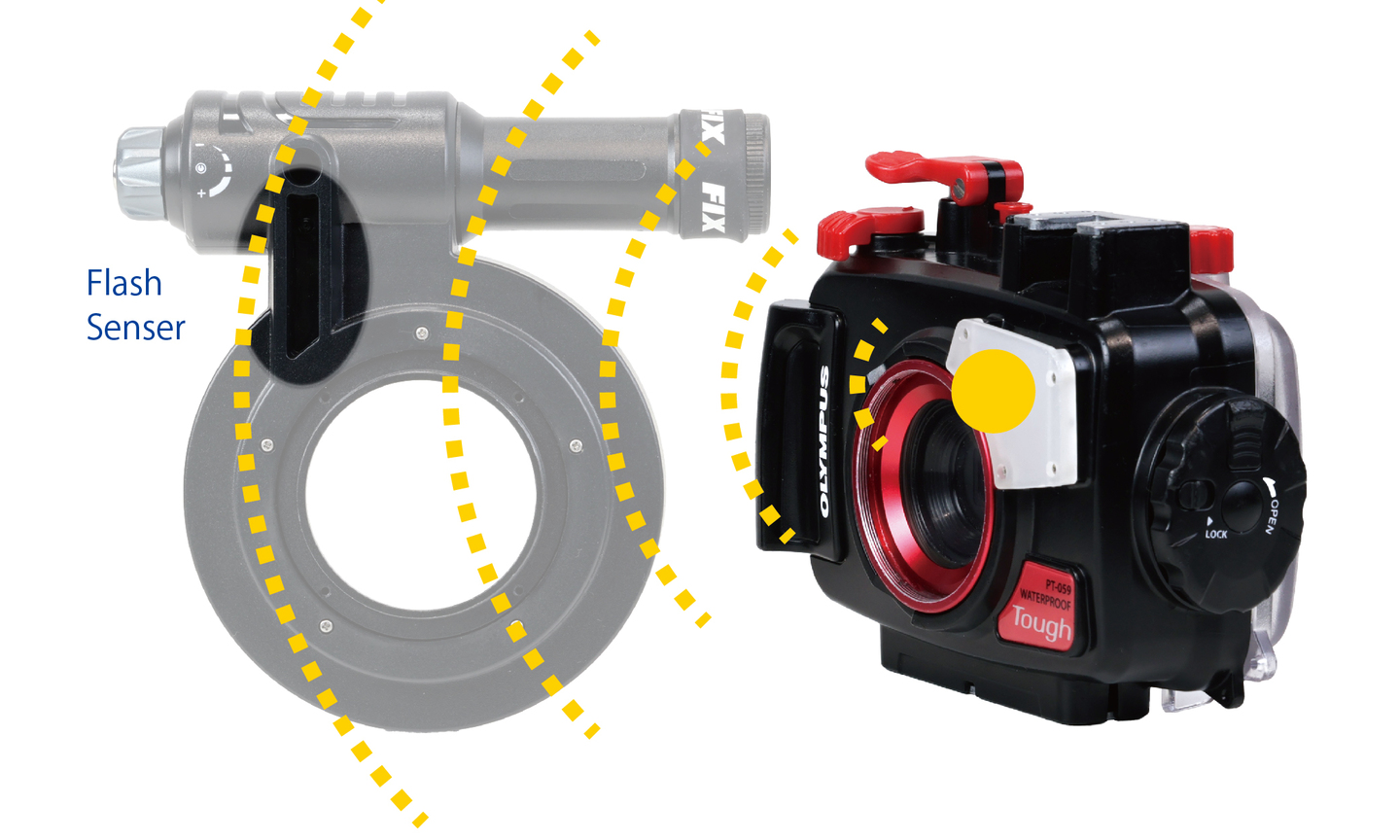

Wireless flash function

Fiber-optic cable connection not required, because the TG's built-in flash wirelessly transmits information to the RL1500's flash sensor.

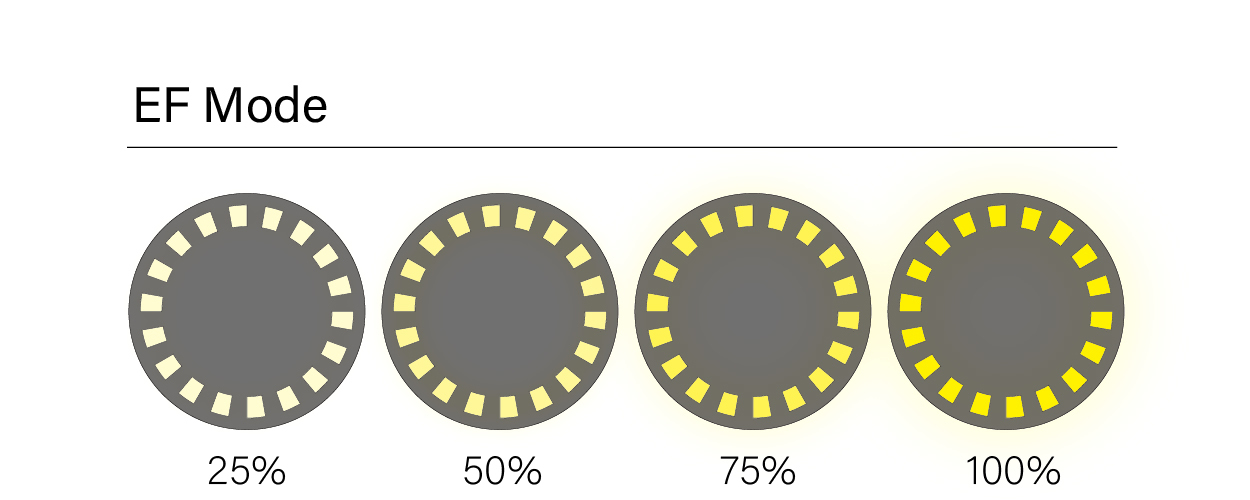

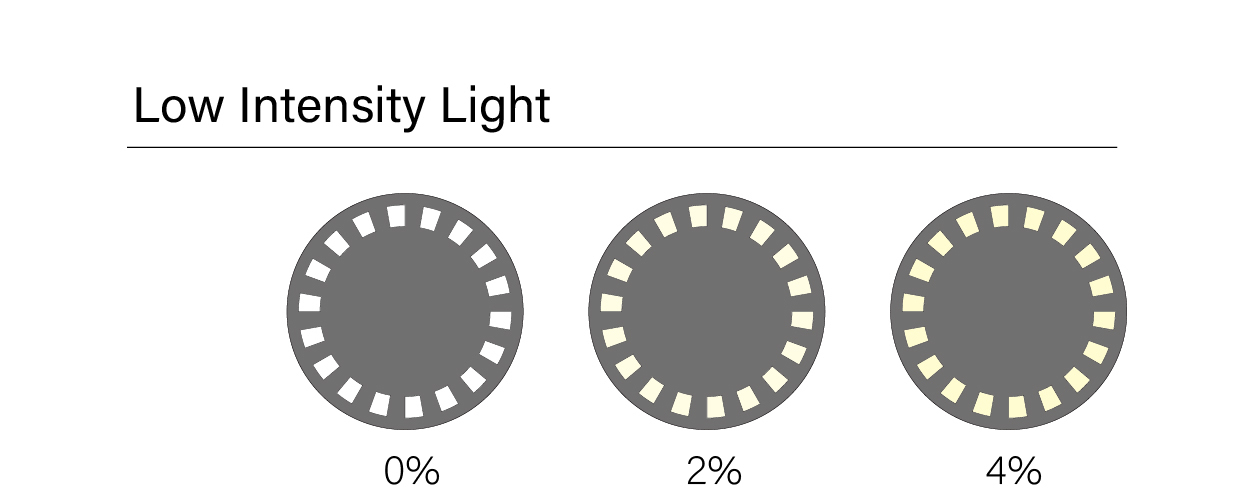

There are 3-steps of low brightness and light intensity for using the wireless flash function, and 4-steps of main flash type.

06

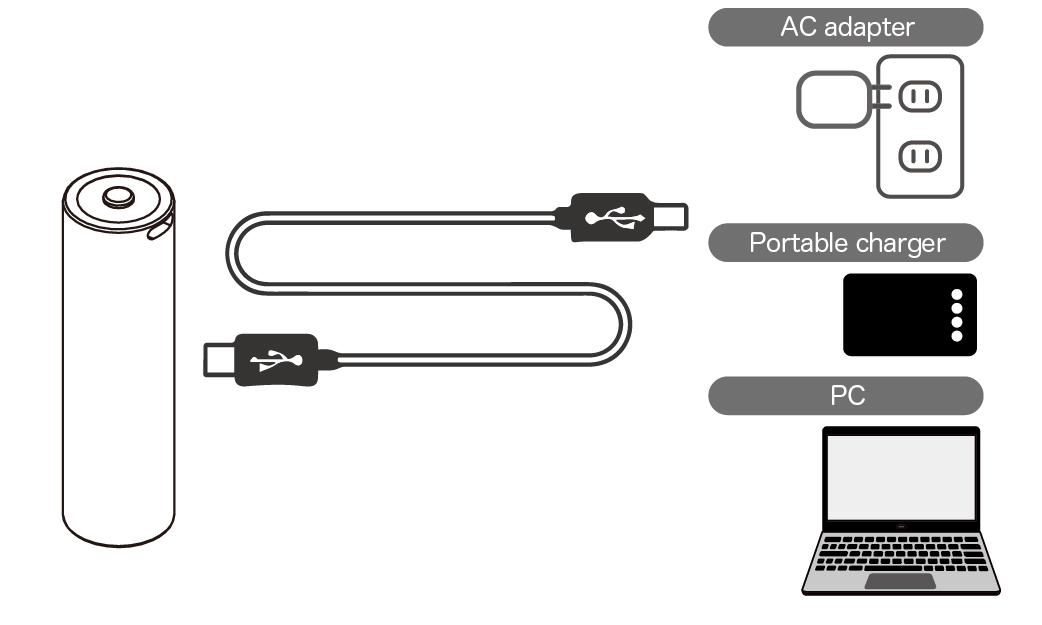

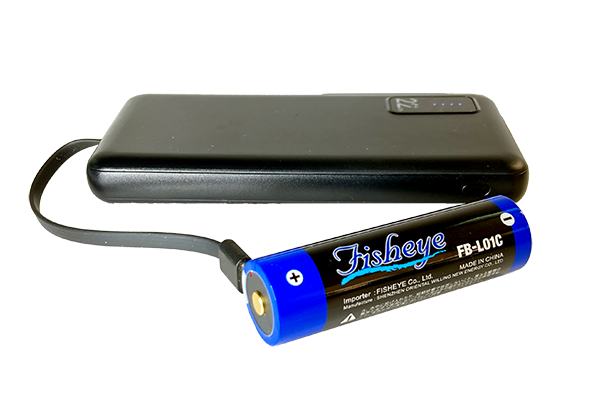

Directly batery charge

The included UCB-C cable can be used to charge the battery directly. The battery can be charged with familiar devices with UCB-C connectors, such as mobile batteries, PCs, and AC adapters. A dedicated charger is not required.

07

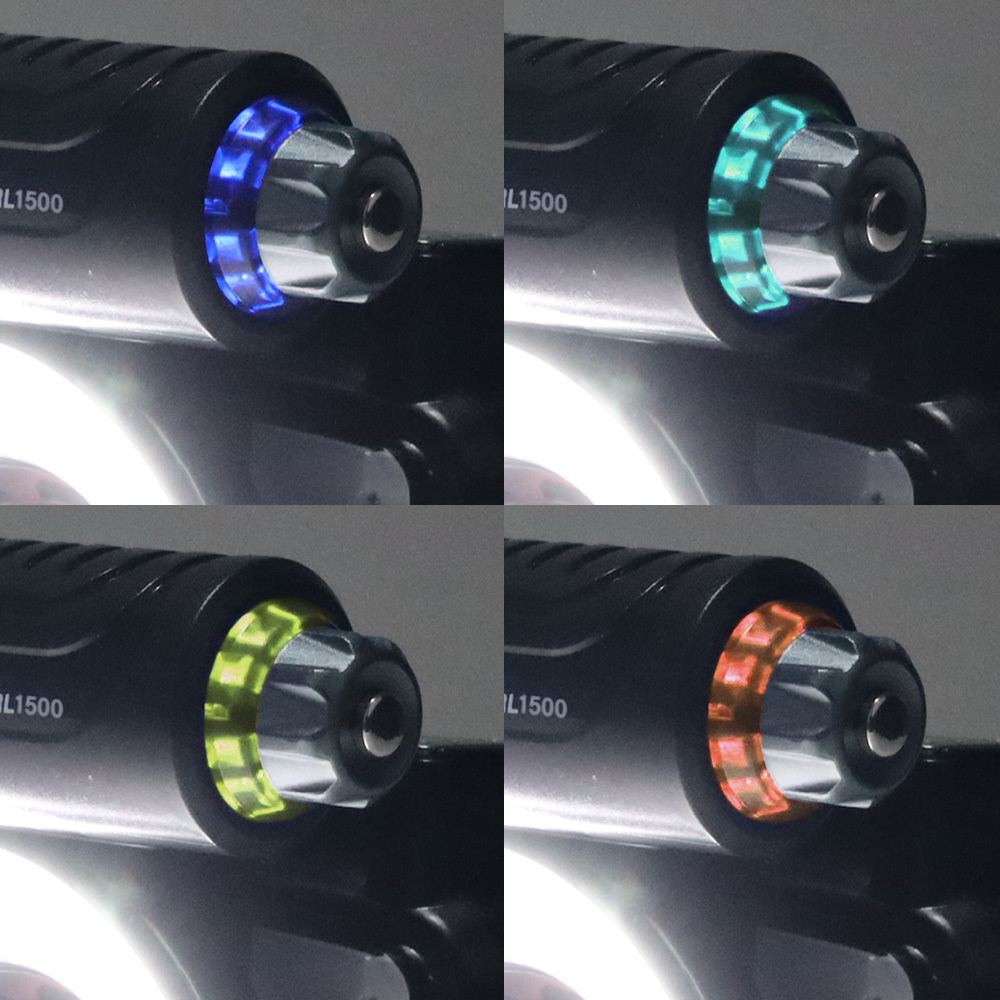

LED Indicator

The LED indicator lights and flashes according to the remaining battery level.

	Lighting Mode	EF Mode
100％〜81％	Blue	Blue Blinking
80％〜31％	Green	Green Blinking
30％〜11％	Yellow	Yellow Blinking
10％〜0％	Red Blinking	Red Blinking

When the LED turns to red flashing indication,
○The light intensity is fixed at 10%.
○The light will automatically turn off after 10 minutes.

08

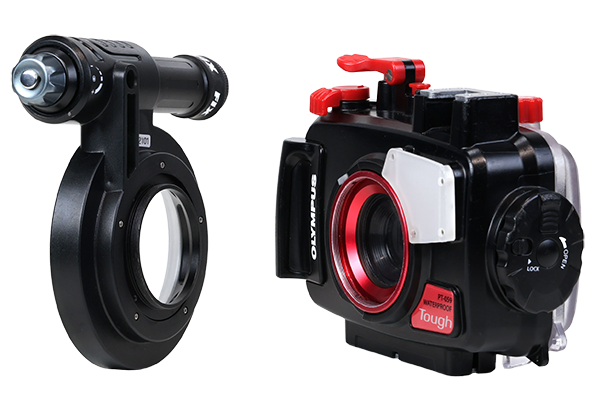

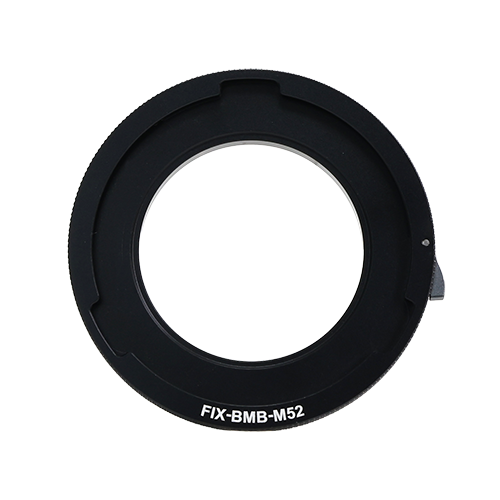

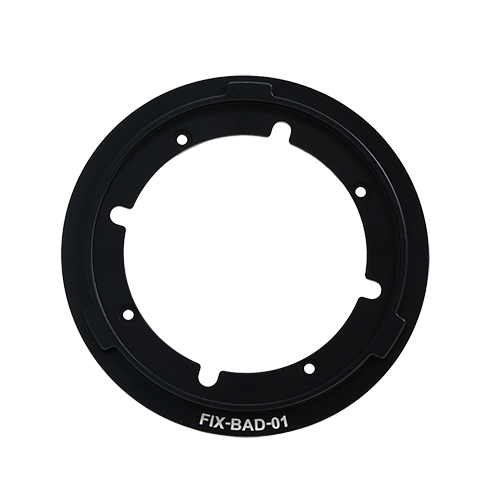

One-touch attachment/detachment with bayonet adapter

There are two ways to install the bayonet adapter.

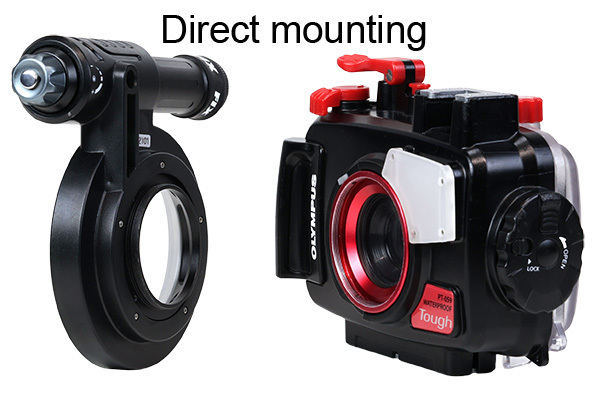

(1) Direct mounting

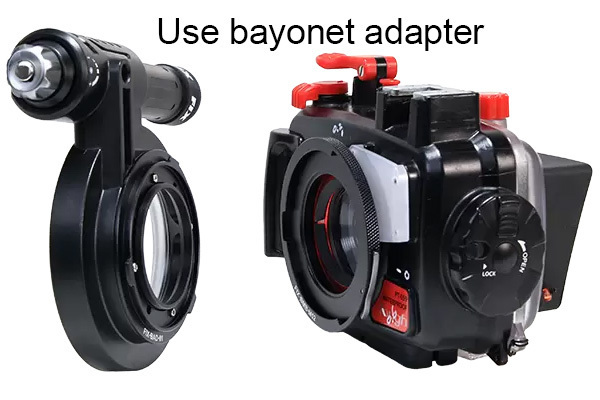

(2) Use bayonet adapter
The RL1500 can be directly screwed onto the TG series, but with the optional bayonet-type mounting base and adapter, attachment and removal is a one-touch operation. The bayonet type eliminates the risk of the RL1500 falling off unexpectedly.

*Options will be available soon.

The RL1500 can be used in combination with an underwater strobe. With the ring light, the strobe can be connected using an optional fiber-optic cable. If you are serious about both macro and wide-angle photography, this is the combination for you!
[Note]
When attaching to the FIX SystemFrame PT01 & FIX M52 lens holder, please use the bayonet adapter (optional / coming soon). *Not compatible with direct screw-in type.

Specifications

Lumens	1500
Bean angle	90degree
Color temperature	5700K
Color rendering index	Ra80
Battery Type	Li-ion 5000mAh
Continuous burn time	60mins. Max
Light adjustment	stepless/4 steps(EF mode)
Depth rating	60m/200ft
Mount	M52(M67 with adapter)

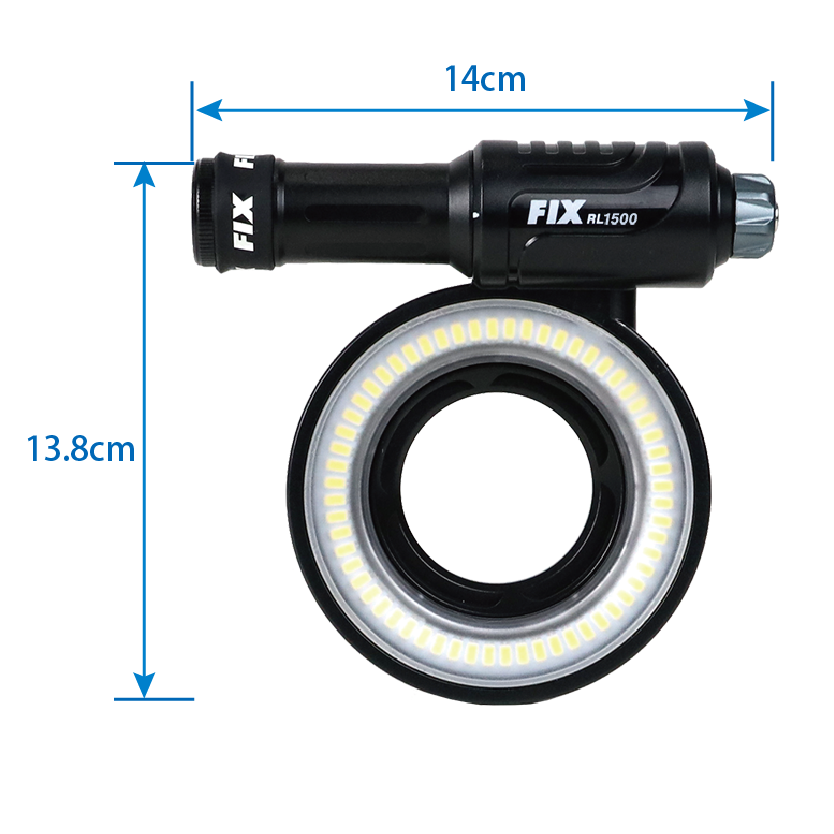

Size	W140 x H138 x D45mm
Weight (in air)	271g
Weight (underwater)	110g
Bundled items	Battery, Multi opener, Color ringx3, Silicon grease, O-ring remover, Spare O-ringx2, USB cable Type-C

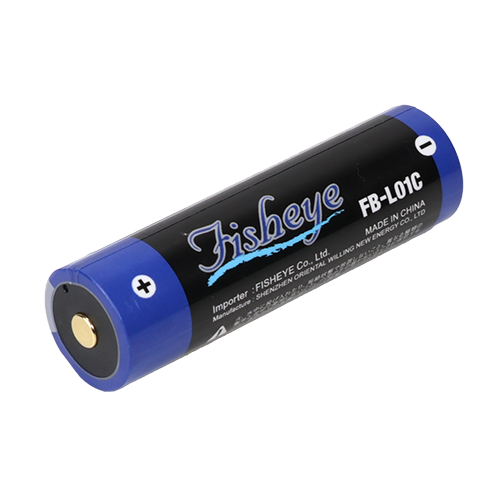

FIX Li-ion Battery FB-L01C

#30616

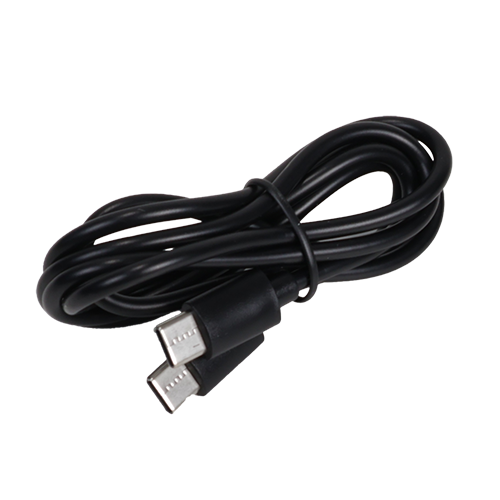

FIX USB cable TypeC

#30619

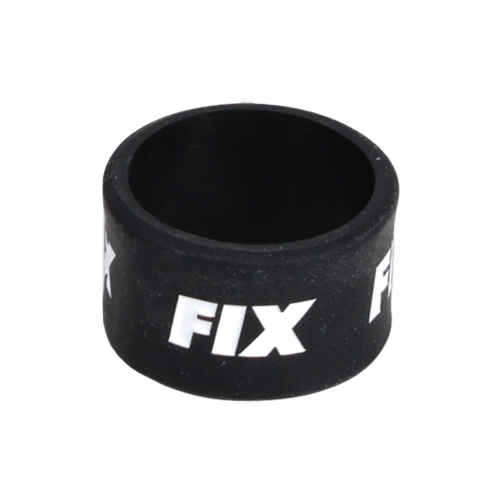

FIX RL1500 RubberBand Black

#30620

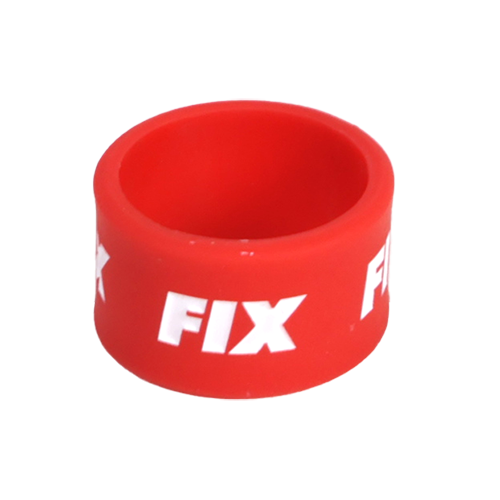

FIX RL1500 RubberBand Red

#30621

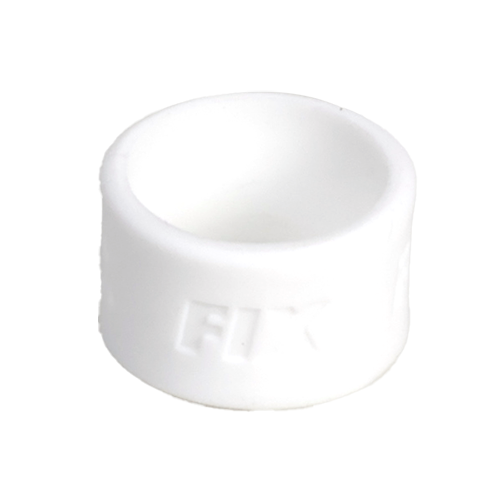

FIX RL1500 RubberBand White

#30622

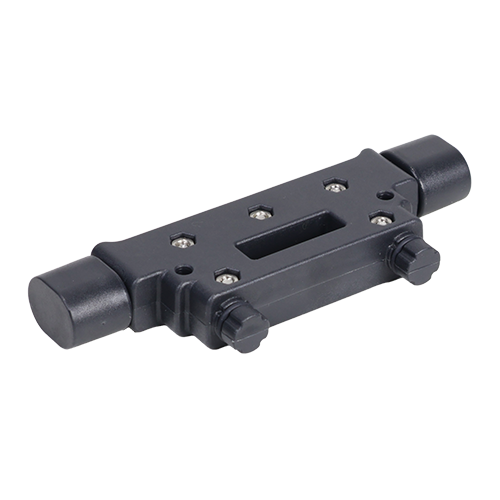

FIX MultiOpener

#30618
